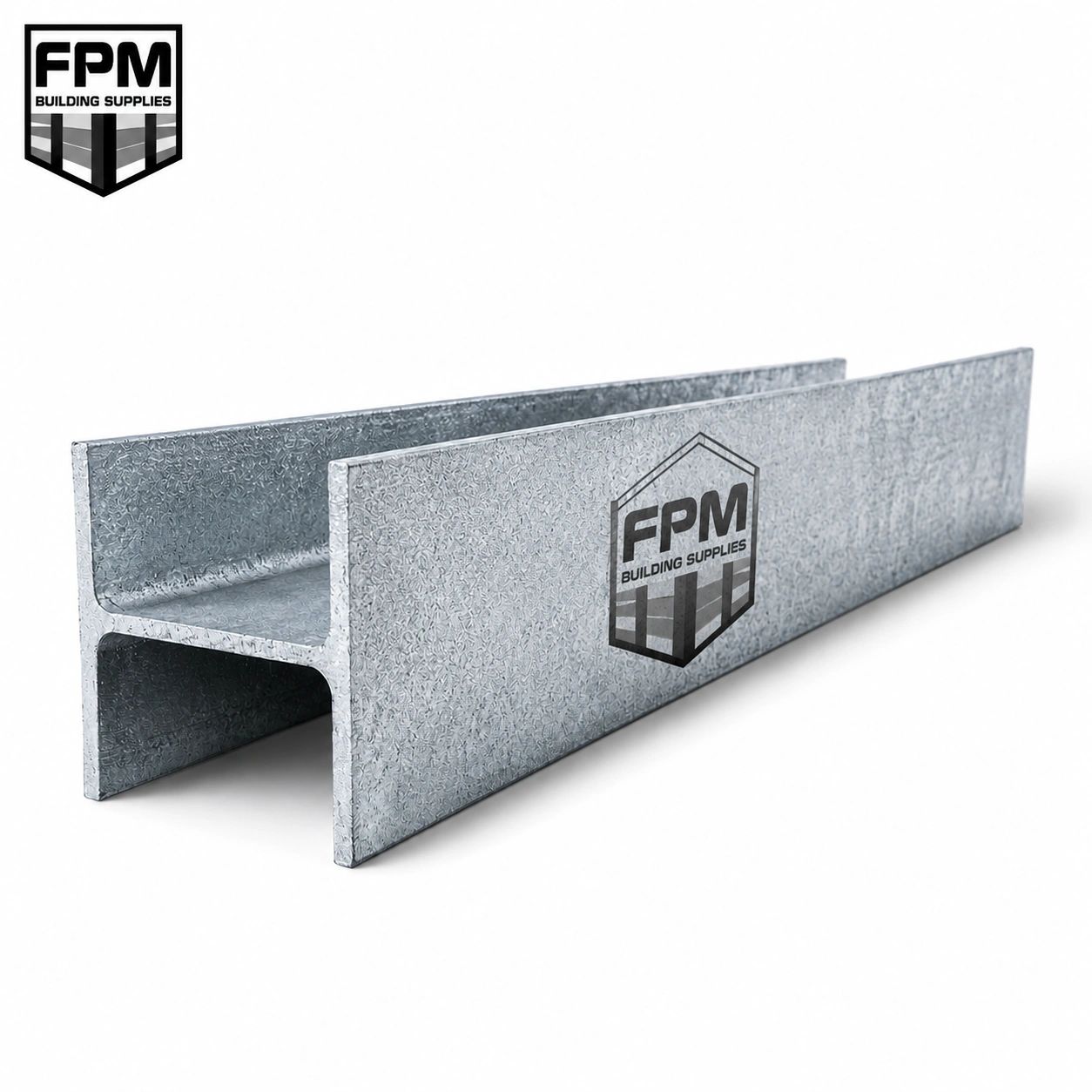

100UC Galvanised Steel H-Post Guide

Built to Last: Why 100UC Galvanised Steel Posts Are Reshaping Construction

In the demanding world of structural builds across Victoria—from high-wind rural zones near Wallan to moisture-prone coastal areas in Epping—choosing the right support system is critical. That’s where 100UC galvanised steel H-posts step in, offering unmatched strength, corrosion resistance, and long-term reliability for engineered projects. Unlike lighter-duty alternatives, these posts are designed to handle significant vertical and lateral loads, making them a go-to choice for retaining walls, heavy fencing, and industrial frameworks.

Combining the robust 100UC universal column profile with hot-dip galvanisation, these steel posts deliver superior resistance to rust, termites, and ground movement—common pain points in reactive clay soils and humid environments. Their precision engineering ensures consistent dimensions and load-bearing performance, reducing on-site adjustments and speeding up installation.

You’ll discover:

• How 100UC posts outperform timber and hollow sections in durability and safety
• Where they’re most effectively used across residential, rural, and commercial sites
• Key installation and maintenance practices to maximise service life

Whether you’re reinforcing a boundary wall, supporting elevated decking, or constructing a shed in a high-stress environment, understanding the role of 100UC galvanised steel is essential to building smarter and stronger.

Engineering Precision: Inside the 100UC H-Post Profile

Understanding the technical details of the 100UC galvanised steel H-post is essential for engineers, builders, and project managers designing long-term structural solutions across Victoria. This robust universal column section is engineered to deliver exceptional strength and consistency in demanding applications—from retaining walls in Melbourne’s outer suburbs to agricultural fencing in regional Victoria’s reactive clay zones.

The 100UC profile features a nominal depth of 100mm, with a parallel flange design that ensures compatibility with standard brackets, base plates, and sleeper systems. The most common variant, the 100UC14.8, weighs 14.8 kg per metre and offers a web thickness of approximately 6.2mm, providing superior resistance to bending and lateral loads. Its symmetrical H-shaped cross-section delivers balanced weight distribution, making it ideal for vertical load-bearing applications where deflection must be minimised.

Key technical advantages include:

• Compliance with AS 3679.1 for structural steel, ensuring suitability for engineered builds
• Hot-dip galvanised coating per AS 4680, delivering a minimum 85-micron zinc layer for corrosion resistance in damp or saline environments
• High yield strength (typically 300MPa minimum), supporting heavy-duty performance in retaining systems and elevated structures
• Dimensional accuracy that allows for pre-drilling, precise bracket alignment, and fast on-site assembly

For optimal performance, these posts should be installed with proper embedment—usually 600mm to 1200mm into concrete or rock sockets, depending on soil type and wind exposure. By leveraging the proven technical integrity of the 100UC profile, construction teams can build with confidence, knowing their structures meet rigorous Australian engineering standards.

Why H-Post Design Outperforms Standard 100UC Columns

When it comes to structural support in demanding environments across Victoria—from Epping backyards to Wallan farming operations—the H-post design offers engineered advantages over standard 100UC columns that directly impact durability, installation efficiency, and long-term performance.

1. Enhanced Stability in Retaining Wall Applications
   H-posts feature an integrated flange design that provides lateral stiffness, reducing deflection when paired with concrete sleepers. This structural geometry resists soil pressure more effectively than standard 100UC sections, making them ideal for engineered retaining walls over 1.2m in height.

2. Optimised for Direct Ground Contact
   Unlike plain 100UC columns that require additional protective measures, H-posts are designed from the outset for burial or direct soil exposure. Their consistent galvanised coating thickness and robust section profile prevent premature deterioration in reactive clay or high-moisture zones.

3. Faster Installation with Built-In Fixing Points
   H-posts typically include pre-punched holes or weld-ready features aligned for standard sleeper heights and bracket systems. This eliminates on-site measuring and drilling, significantly speeding up installation compared to conventional columns that must be custom-fitted.

4. Superior Load Distribution Across Weak Ground
   The H-post’s wider base footprint improves bearing capacity in unstable soils. When set in concrete or driven into soft ground, it resists settlement and lateral shift more effectively than narrow-footprint 100UC sections.

5. Reduced Long-Term Maintenance Risks
   With fewer welded joints and an intact galvanised layer across all critical zones, H-posts offer greater corrosion resistance over decades of service. Their design minimises the risk of coating damage during installation—a common issue with standard columns that must be modified on-site.

Trusted Applications: Where 100UC Steel Posts Excel Across Victoria

From suburban boundary walls in Epping to reinforced retaining systems in Wallan’s reactive clay zones, 100UC galvanised steel posts have become a cornerstone of durable, engineered construction. These robust universal columns deliver unmatched structural integrity, making them the preferred choice for fencing, retaining walls, and critical structural support across residential, agricultural, and commercial builds.

In fencing applications, 100UC posts offer a long-lasting alternative to timber, resisting rot, termites, and warping—common issues in Victoria’s variable climate. Their consistent dimensional profile ensures straight, plumb installations, especially when anchoring heavy-duty steel palisade, cyclone mesh, or modular screens in high-wind areas.

For retaining walls, 100UC posts serve as vertical supports paired with high-strength concrete sleepers, effectively managing lateral earth pressure. Their load-bearing capacity makes them ideal for walls exceeding 1.2 metres in height, particularly on sloped or unstable terrain common in Melbourne’s outer growth corridors.

Structural projects—from farm sheds and carports to commercial mezzanine frameworks—also benefit from the 100UC’s rigidity and corrosion resistance. When embedded correctly with concrete footings or helical piles, these posts withstand uplift, settlement, and environmental exposure, ensuring safety and compliance with Australian Standards across diverse Victorian landscapes.

Step-by-Step: Installing H-Posts with Concrete Sleepers and Fencing

Installing 100UC galvanised steel H-posts with concrete sleepers requires precision and adherence to engineering standards, especially across Victoria’s varied soil conditions—from the reactive clays of Wallan to coastal Epping’s saline environments. Follow this proven sequence for a durable, code-compliant installation.

1. Mark Post Layout Accurately
   Use string lines and marking paint to position post centres (typically 1.5m to 3m apart). Confirm spacing with engineered plans to maintain structural integrity under lateral loads.

2. Excavate Holes to Required Depth
   Dig holes to a minimum of 600mm, or deeper in high-wind or unstable ground. Use a post hole digger or auger for consistent diameter—slightly wider than the sleeper thickness to allow for alignment.

3. Set Base Concrete (Optional but Recommended)
   Pour a 100–150mm concrete base into each hole to prevent moisture pooling and reduce corrosion risk. Allow to partially set before aligning posts.

4. Position H-Post and Align Vertically
   Insert the 100UC post into the hole. Use a spirit level or laser to ensure perfect plumb on two axes. Brace with timber stakes while continuing to next steps.

5. Install 60MPa Concrete Sleepers
   Stack and align sleepers with pre-drilled holes matching post spacing. Secure to H-post using approved steel brackets or shear connectors. Tighten bolts incrementally to avoid misalignment.

6. Backfill and Stabilise
   Backfill around the post with compacted crusher dust or concrete. Ensure drainage away from the base to prevent water retention.

7. Attach Fencing Panels or Mesh
   Fix cyclone mesh, timber battens, or steel palisade panels directly to the posts or sleeper edges using corrosion-resistant fasteners.

TIP: For long walls, set intermediate posts first and align end posts to them. Always inspect and re-touch galvanising at cut or drilled points with zinc-rich paint.

Frequently Asked Questions About 100UC Galvanised Steel Posts

What is the difference between 100UC and other steel post profiles?
The 100UC (100mm Universal Column) is specifically engineered for vertical load-bearing applications, featuring parallel flanges and a deeper web compared to standard beams or hollow sections. This design provides superior resistance to buckling and lateral forces, making it ideal for structural support in retaining walls, fencing, and steel frameworks across Victoria—including high-load zones like Epping and Wallan.

Why choose galvanised 100UC posts over painted or untreated steel?
Hot-dip galvanisation creates a durable, bonded zinc coating (minimum 85µm per AS 4680) that protects against rust in moist, saline, or reactive clay environments. Unlike painted steel, which can chip and expose the base metal, galvanised posts maintain corrosion resistance at cut edges and drilled points when properly sealed, ensuring performance for 50+ years.

Can 100UC posts be used in coastal areas like Port Melbourne or St Kilda?
Yes—these posts are highly resistant to salt spray and humidity, making them well-suited for coastal builds. Their galvanised finish reduces maintenance needs while delivering long-term reliability in high-exposure locations, where untreated timber or mild steel would degrade rapidly.

Are 100UC posts suitable for DIY projects?
While possible for experienced DIYers, these posts are typically part of engineered systems. Proper installation requires adherence to spacing, footing depth (minimum 600mm), and alignment standards. Always consult an accredited engineer, especially for retaining walls, sloped sites, or high-wind areas.

How do I repair damaged galvanising on a 100UC post?
Light surface scratches can self-passivate, but deeper damage exposing steel should be treated immediately. Clean the area and apply a cold-galvanising zinc-rich paint to restore protection and prevent red rust formation.

Choosing the Right H-Post for Long-Term Performance

When it comes to building durable, code-compliant structures in challenging environments like Victoria’s reactive clay soils or coastal zones, the decision to use 100UC galvanised steel H-posts isn’t just about strength—it’s about smart engineering and long-term value. These posts offer unmatched resistance to corrosion, superior load-bearing capacity, and minimal maintenance, making them ideal for retaining walls, fencing, sheds, and industrial frameworks. Unlike timber or lighter steel alternatives, they resist warping, rot, and termite damage while maintaining structural integrity for decades.

To make the best choice for your project, always confirm key factors: soil type, wind exposure, required embedment depth, and spacing. Work with an accredited engineer to ensure designs meet AS 1170 and AS 4680 standards—especially in high-risk or sloped areas. Prioritise hot-dip galvanisation to protect against moisture and saline exposure, and remember to seal any cut or drilled sections post-installation.

Take action today by reviewing your current and upcoming builds—where could 100UC posts improve durability and reduce long-term costs? Consider the lifecycle savings, not just upfront pricing. For trusted supply and expert guidance on specifications, explore your local building supplier’s offerings in Epping or Wallan. Build with confidence, knowing your structures are engineered to last.
