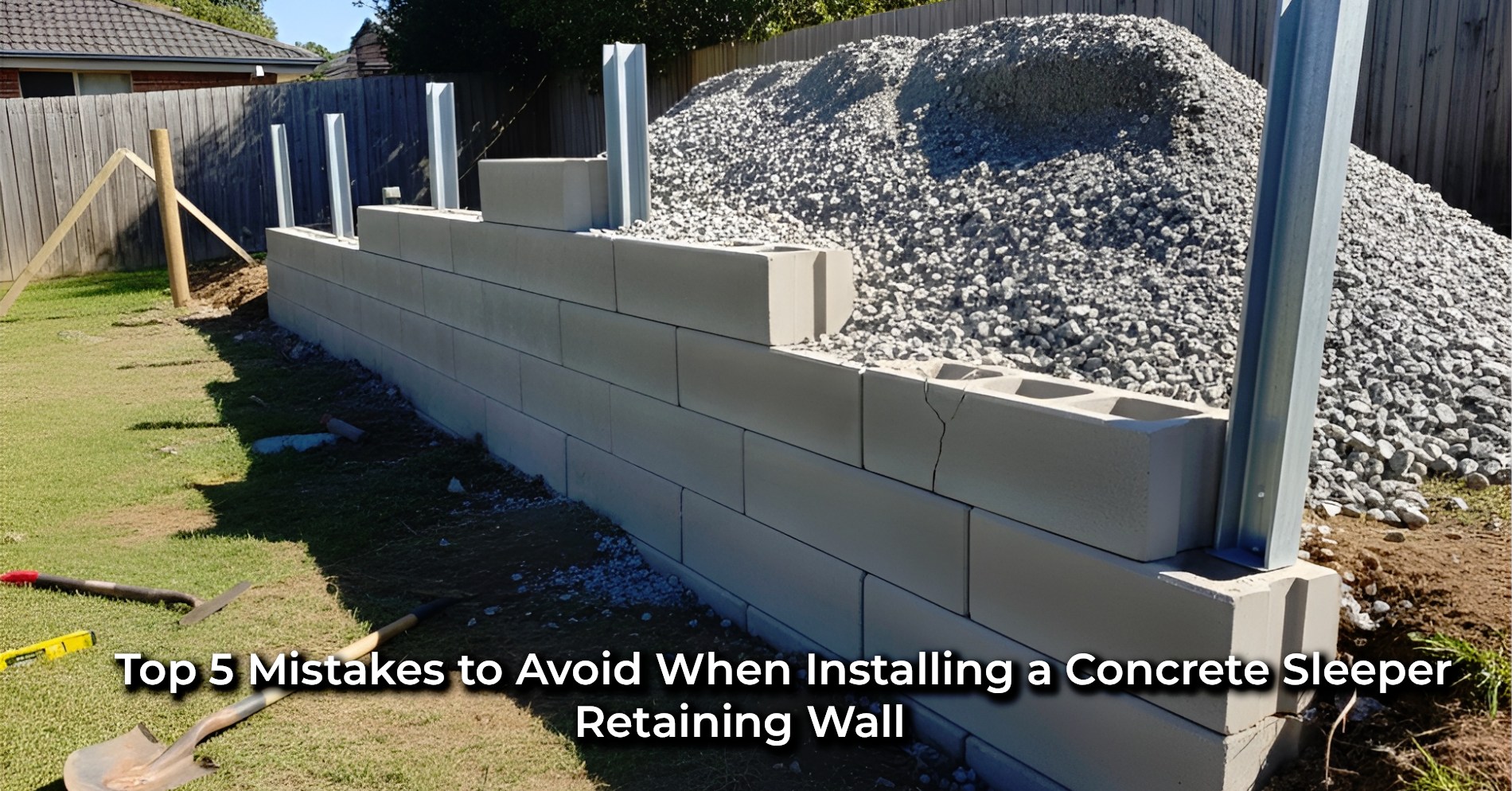

Top 5 Mistakes to Avoid When Installing a Concrete Sleeper Retaining Wall

Concrete sleeper retaining walls are a popular choice across Melbourne for their strength, clean aesthetics, and long-term durability. Whether you’re terracing a sloped backyard, creating raised garden beds, or stabilising an embankment, precast concrete sleepers offer a robust and stylish solution. However, even the highest-quality materials—like the 50 MPa concrete sleepers and galvanised steel posts from FPM Building Supplies —can fail if installed incorrectly.

At FPM Building Supplies , we’ve seen countless retaining wall projects succeed—and a few fail—due to preventable errors. Many of these failures stem from overlooked fundamentals: poor drainage, shallow footings, or mismatched support posts. The good news? Every one of these mistakes is avoidable with the right knowledge and preparation.

In this guide, we’ll walk you through the top 5 mistakes homeowners and DIYers make when installing concrete sleeper retaining walls, explain why they happen, and—most importantly—show you how to get it right the first time. Whether you’re tackling a weekend project or managing a professional build, these insights will save you time, money, and future headaches.

Mistake #1: Ignoring Drainage Behind the Wall

Why It’s a Problem

Water is the silent killer of retaining walls. When rain or irrigation saturates the soil behind your wall, it creates hydrostatic pressure—a powerful lateral force that pushes against the sleepers. Without a way to escape, this water builds up, causing the wall to bulge, crack, or even collapse.

In Melbourne’s clay-heavy soils, poor drainage is especially dangerous. Clay retains water and expands when wet, amplifying pressure on the structure.

The Right Approach

Always install a drainage system for any retaining wall over 450mm high:

• Lay agricultural (ag) pipe at the base of the wall, wrapped in geotextile fabric to prevent clogging
• Backfill the first 150–300mm behind the wall with clean gravel or scoria to allow water to flow freely to the pipe
• Ensure the ag pipe slopes slightly (1–2%) to direct water away from the wall and toward a safe discharge point (e.g., stormwater drain or garden bed)

This simple step dramatically reduces pressure and extends your wall’s life by decades.

👉 Learn more in Concrete Sleepers: The Foundation of Durable Landscaping .

Mistake #2: Using Inadequate or Incorrect Support Posts

Why It’s a Problem

Concrete sleepers are heavy and rigid—but they rely entirely on the posts behind them for structural support. Using the wrong type, size, or spacing of posts is a common—and critical—error.

• C Posts (100x50mm) are great for light-duty fencing but not sufficient for tall or load-bearing retaining walls
• Untreated or thin-gauge steel will rust quickly, especially in wet or coastal areas
• Posts spaced too far apart (e.g., 3m instead of 2.4m) allow sleepers to bow or crack under soil pressure

The Right Approach

Choose your posts based on wall height and function:

Up to 600mm	Galvanised Steel C Post (100x50mm)	Lightweight, cost-effective for low walls
600mm – 1.2m	Galvanised Steel H Post (100x100UC)	Superior load-bearing capacity
Over 1.2m	H Posts + additional bracing	Required for structural integrity

• Space posts every 2.4m (centre-to-centre) to match standard sleeper lengths
• Use Corner Posts at all 90° angles to handle concentrated stress
• Use 45-Degree Posts on slopes to maintain alignment

All FPM steel posts are hot-dip galvanised for maximum corrosion resistance—even in Melbourne’s wet winters.

Explore the differences in Galvanised Steel H Posts vs C Posts .

Mistake #3: Digging Post Holes That Are Too Shallow

Why It’s a Problem

A retaining wall is only as strong as its foundation. Shallow post holes compromise stability, especially in Melbourne’s reactive clay soils, which swell and shrink with moisture changes. Posts that aren’t anchored deeply enough will shift, tilt, or pull out over time.

This mistake is often made to save time or avoid hitting hard ground—but it guarantees future failure.

The Right Approach

Follow the 1/3 rule:

Post hole depth = 1/3 of the total post length

For example:

• If your wall is 900mm high, use a 2.7m post with 900mm above ground and 1.8m below ground
• Minimum depth for most residential walls: 800mm

On slopes, use stepped footings so each post is buried to the correct depth, maintaining a level top line.

💡 Pro Tip: Add 100mm of gravel at the bottom of each hole for drainage and to prevent post base corrosion.

For step-by-step guidance, see our Guide to Installing Galvanised Steel Posts .

Mistake #4: Skipping Proper Backfill and Compaction

Why It’s a Problem

After installing your sleepers, it’s tempting to quickly shovel soil behind the wall and call it a day. But loose, uncompacted backfill settles over time, creating voids that allow the wall to lean forward. In extreme cases, this leads to total collapse.

Additionally, using native clay or organic soil behind the wall traps moisture and increases pressure.

The Right Approach

Backfill in layers (lifts) of 150–200mm, compacting each layer with a hand tamper or plate compactor. Use free-draining material like gravel or sandy loam—not clay or garden soil.

For walls over 600mm:

1. Install drainage system (ag pipe + gravel)
2. Backfill first 300mm with gravel
3. Continue with compacted structural fill
4. Finish top 100mm with topsoil for planting (if desired)

This method ensures long-term stability and prevents settlement.

Mistake #5: Neglecting Wall Batter (Slight Backward Lean)

Why It’s a Problem

A perfectly vertical retaining wall fights gravity and soil pressure head-on. Over time, this creates immense stress at the base, leading to cracking or overturning.

The solution? Batter—a slight backward tilt (2–5°) that uses gravity to your advantage.

The Right Approach

When installing posts:

• Tilt them 2–3° backward (into the retained soil)
• Use a spirit level with a slope gauge or inclinometer to measure
• Ensure all posts have the same angle for a uniform sleeper line

This small adjustment significantly improves resistance to lateral pressure—especially important for walls over 600mm.

For visual reference, check out How to Create a Tiered Garden Bed , which demonstrates proper batter in multi-level designs.

Bonus: Other Common Oversights

❌ Using Sleepers Not Rated for Structural Use

Not all concrete panels are created equal. Only use 50 MPa precast concrete sleepers—like those from FPM—which are engineered for load-bearing applications. Standard garden edging blocks lack the strength for retaining walls.

👉 Discover the advantages of 50 MPa concrete .

❌ Forgetting Expansion Gaps

Concrete expands in heat. In long walls, leave 5–10mm gaps between sleepers or install expansion joints every 6–8m to prevent cracking.

❌ Poor Alignment and Leveling

Use a 2m spirit level and string lines throughout installation. Misaligned sleepers look unprofessional and create weak points.

Master the process with Mastering Concrete Sleeper Installation .

How FPM Building Supplies Helps You Avoid These Mistakes

At FPM Building Supplies, we don’t just sell materials—we empower success. Based in Epping, Melbourne, we provide:

✅ Premium 50 MPa Concrete Sleepers

• Available in plain and charcoal finishes
• Engineered for structural applications, not just decoration

✅ Rigorous Quality Control

• All products tested to meet Australian standards
• Learn how we ensure quality in every product

✅ Expert Product Matching

• H Posts for heavy-duty walls
• Corner Posts for stress points
• 45-Degree Posts for slopes

✅ Fast Local Support

• Metro Melbourne delivery
• Free advice from experienced builders

We’re proud to be Melbourne’s trusted source for high-quality concrete solutions .

Real-World Example: A Wall That Failed—and How to Fix It

A homeowner in Keilor installed a 1m-high sleeper wall using C Posts and no drainage. After two heavy winters, the wall bulged outward and cracked at the joints.

What went wrong?

• C Posts lacked strength for 1m height
• No drainage → hydrostatic pressure built up
• Shallow footings (only 500mm) in clay soil

The fix:

• Demolish and rebuild with H Posts at 800mm depth
• Install ag pipe and gravel drainage
• Add proper batter and compacted backfill

The new wall has stood strong for 5+ years—even through Melbourne’s wettest spring on record.

Maintenance Tips to Extend Wall Life

Even a perfectly built wall benefits from care:

• Inspect annually for leaning, cracks, or pooling water
• Clear weep holes or drainage outlets of debris
• Re-grade soil if erosion exposes post bases
• Trim vegetation near the wall to reduce moisture retention

Full guide: How to Maintain Concrete Sleepers .

Get It Right the First Time

A concrete sleeper retaining wall is a long-term investment in your property’s functionality and value. By avoiding these five critical mistakes—and using high-quality materials from FPM Building Supplies—you ensure your wall stands strong for 30+ years with minimal upkeep.

Don’t gamble with shortcuts. Build with confidence, engineering, and the right support.

Get Started Today

Ready to build a retaining wall that lasts?

• Browse our full range: FPM Building Supplies
• Choose your sleepers: Plain or Charcoal
• Select your posts: H Post , C Post , Corner Post , 45° Post
• Need help? Contact our team
• Visit us: 32 Fullarton Dr, Epping VIC 3076
• Call: +61 431 235 919 or +61 421 370 700
• Email: contact@fpmbuildingsupplies.com.au

Explore more expert advice in our Blogs or read Why Melbourne Builders Trust FPM .

Final Thoughts

Installing a concrete sleeper retaining wall is a rewarding project—but only if done correctly. By prioritising drainage, using the right posts, digging deep, compacting properly, and adding batter, you create a structure that’s not just beautiful, but truly engineered to last.

At FPM Building Supplies, we’re here to support every step of your journey with premium Australian-made products, local expertise, and unwavering commitment to quality.

Build smart. Build strong. Build with FPM.
